8 Port gigabit unmanaged switch ethernet poe switch
DC48V din rail network switch

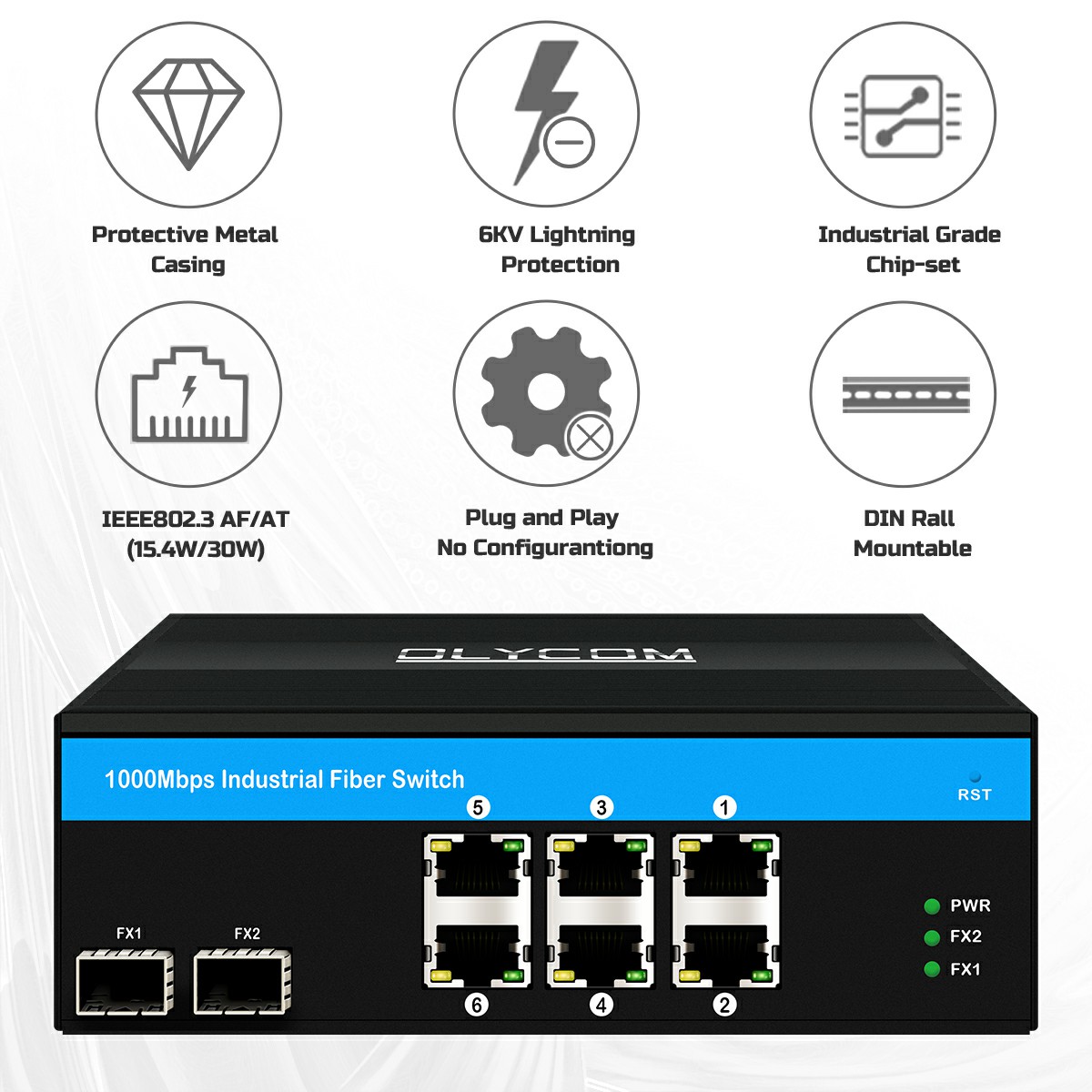

Key Features of Industrial poe switch
- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af/at power on to 1 ~ 6 RJ45 ports
- 6x 10/100/1000Mbps Auto-sensing RJ45 ports
- 2x 1000Mbps SFP fiber ports
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- Max power to 15.4W under af standard, 30W under at standard to each PoE port
- Detect the PoE models of electrical equipments.
- A store-and-forward switching mechanism
- Operating environment temperature: -40～75°C
Specification of Industrial Full Gigabit Switch
| Product Name | 10/100/1000Mbps Industrial POE Fiber Switch (2F+6TP) |
| Model No. | IM-FP266GE |
| Port | 2x 1000Mpbs SFP ports SM: 1310nm/1550nm, 20Km 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500m 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features | Transmission mode: storage and forward System bandwidth: 16Gbps (non-traffic jam) Forwarding rate: 11.904Mmps MAC: 4K Packet buffer size: 1.75Mb |
| Network media | 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km |
| LEDs | Power, network, fiber |
| Power supply | POE power supply input voltage: 48V (max 52V) Single PoE power supply output power: 30W (port 1~8)
Total budget: 180W PoE output voltage: 48V |
| Environment | Working temperature: -40～75°C Storage temperature: -40～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards | EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety | CE Mark, commercial CE/LVD EN60950 |
| Mechanical information | Shell: Corrugated metal shell Safety class: IP40 Dimension: 158 x 115x 60mm Mounting method: Din-rail/Wall mounting |
| Warranty | 3 years |

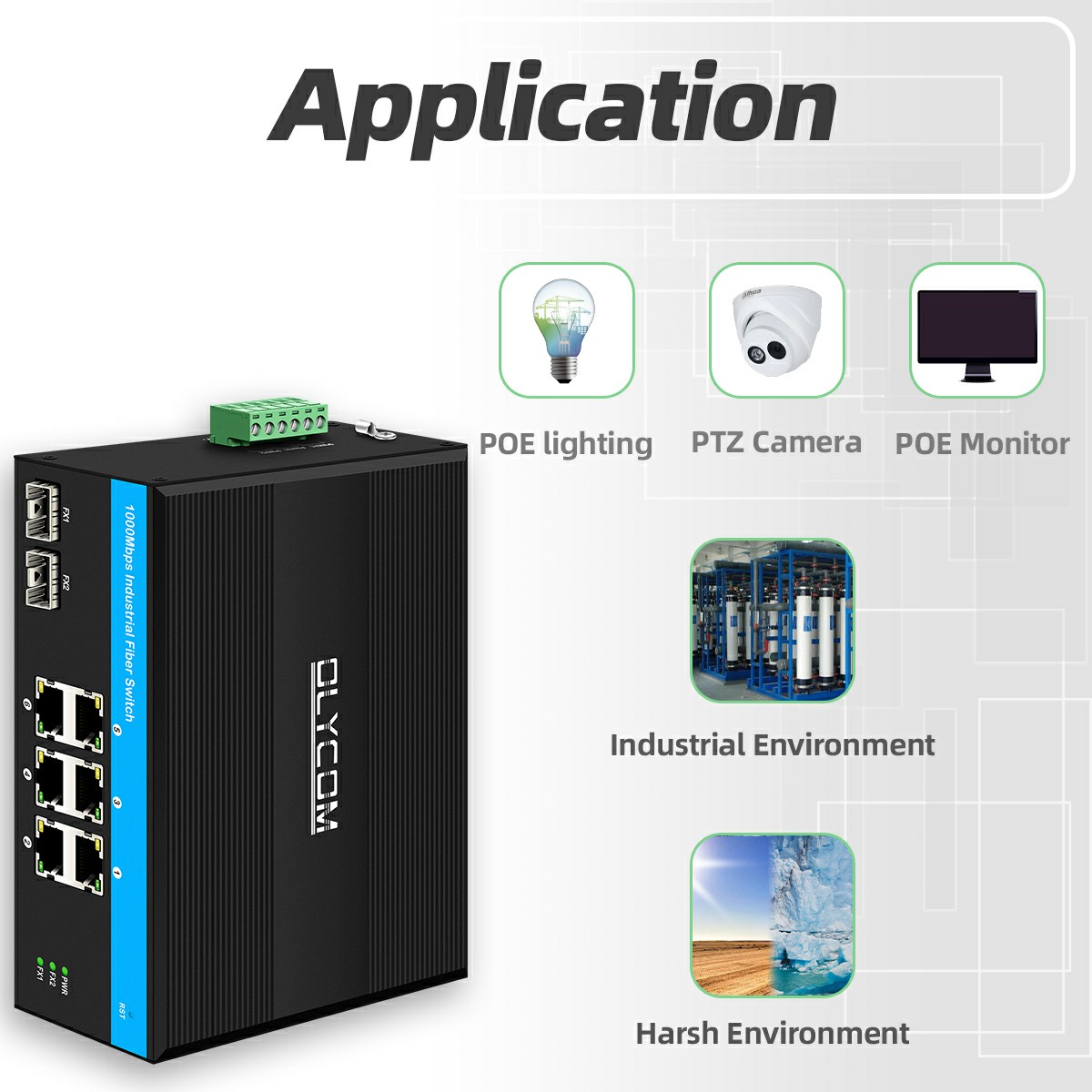

Application
FAQ
1. What is the power budget?
A: Each PoE port supports 15.4W/30W/60W output.
The default output is 30W(please let us know if you need 60W type)
The total budget: output watts of each port times PoE ports
2. Is it managed?
A: No, this series is unmanaged.
We have another managed series for your choice.
3. What installation method does it support?
A: It supports Din Rail and wall mounting.
If a special mounting kit is required, it is OK, we dealt with it before.
4. Does the fiber port support 100M speed?
A: Yes, for 100M models, it just supports 100M modules.
For Gigabit models, the fiber port is 100M/1000M auto-adaptive, you can insert 155Mb/s or 1.25Gb/s modules, both will work.
5. Can you help write the label content?
A: Yes,please let us know if you need to put your model name/logo/description on the label.
The standard language is English. If this is about some different languages like Korean, Italian or Russian, please just send the accurate format, we will copy and paste.
