Compact and Easy-to-Install 8 Port Industrial Fiber Switch with DIN Rail Mounting

Name: Compact and EasytoInstall 8 Port Industrial Fiber Switch with DIN Rail Mounting
Brand: OLYCOM
Price: 1 USD

China Compact and Easy-to-Install 8 Port Industrial Fiber Switch with DIN Rail Mounting wholesale

Brand Name : OLYCOM

Model Number : IM-FS180GE/ST

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T, Paypal, D/P, D/A, L/C, MoneyGram

Supply Ability : 6000 per month

Delivery Time : 3-5 days

Packaging Details : One unit device and one user manual are inside one box , sealed and well protected.

Product Name : 8 Port Industrial Fiber Switch

Rate : 10/100/1000Mbps

Fiber Port : 1 ST dual fiber port

Ethernet Port : 8 Rj45 Ports

Working temperature : -45~75℃

Power supply : DC12-52V

Shell : Corrugated metal shell

Warranty : 3 Years

Contact Now

8 Port Industrial Fiber Switch Gigabit Optical Unmanaged Switch With 1 ST Dual Fiber Outdoor

Introduction of Industrial Fiber Switch

8 Port Fiber Switch is the 10/100/1000 Mbps industrial Optical unmanaged switch, operating temperature-40 ℃ to + 75 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of Industrial Fiber Switch

6 KV Ethernet surge protection, adapt to a harsh outdoor environment
Auto MDI/MDIX is Supported
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
A store-and-forward switching mechanism

Quality Assurance of Industrial Fiber Switch

We absolutely never use old and refurbished materials.
Always a pre-production sample before mass production;
Have professional engineers check the quality.
All products have passed CE, FCC, ROHS, and other certifications
Always final Inspection before shipment;

Specification of Industrial Fiber Switch

Product Name	10/100/1000Mbps 8 Port Industrial Fiber Switch
Model No.	IM-FS180GE/ST
Port	1 x 1000Mpbs ST port SM:1310nm,20Km 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features	Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) ST port, transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs	Power, network, fiber
Power supply	Input voltage: DC 12-52V No-load power:5W Reverse connection: support
Environment	Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing
Industry Standards	EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4
Safety	CE Mark , commercial CE/LVD EN60950
Mechanical information	Shell: Corrugated metal shell Safety class: IP40 Dimension:158 x 114.8 x 60mm Mounting method: Din-rail mounting
Warranty	3 years

Packing List of Industrial Fiber Switch

User Manual *1 pc

8 Port Industrial Fiber Switch *1 pc

Warranty Card *1 pc

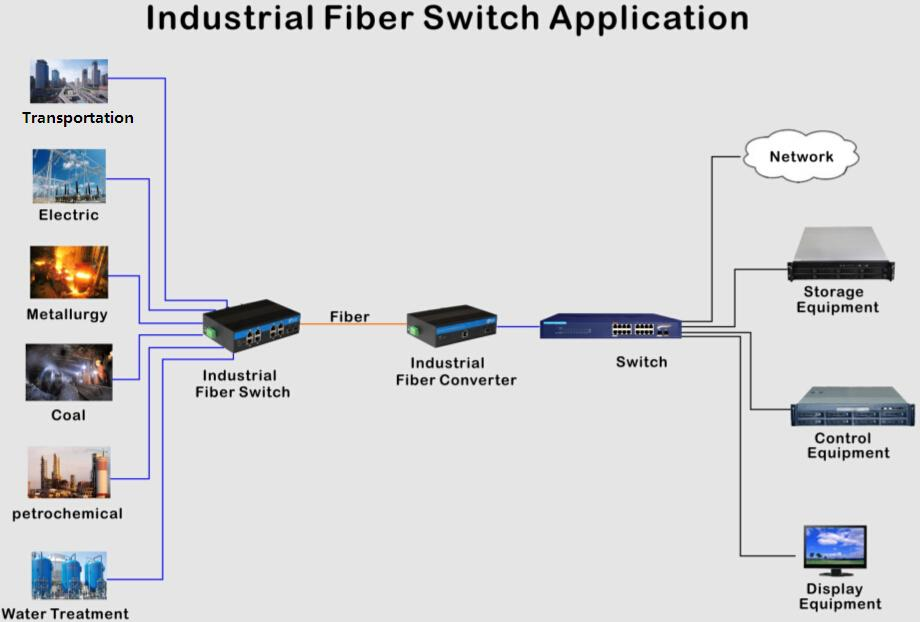

Application of Industrial Fiber Switch

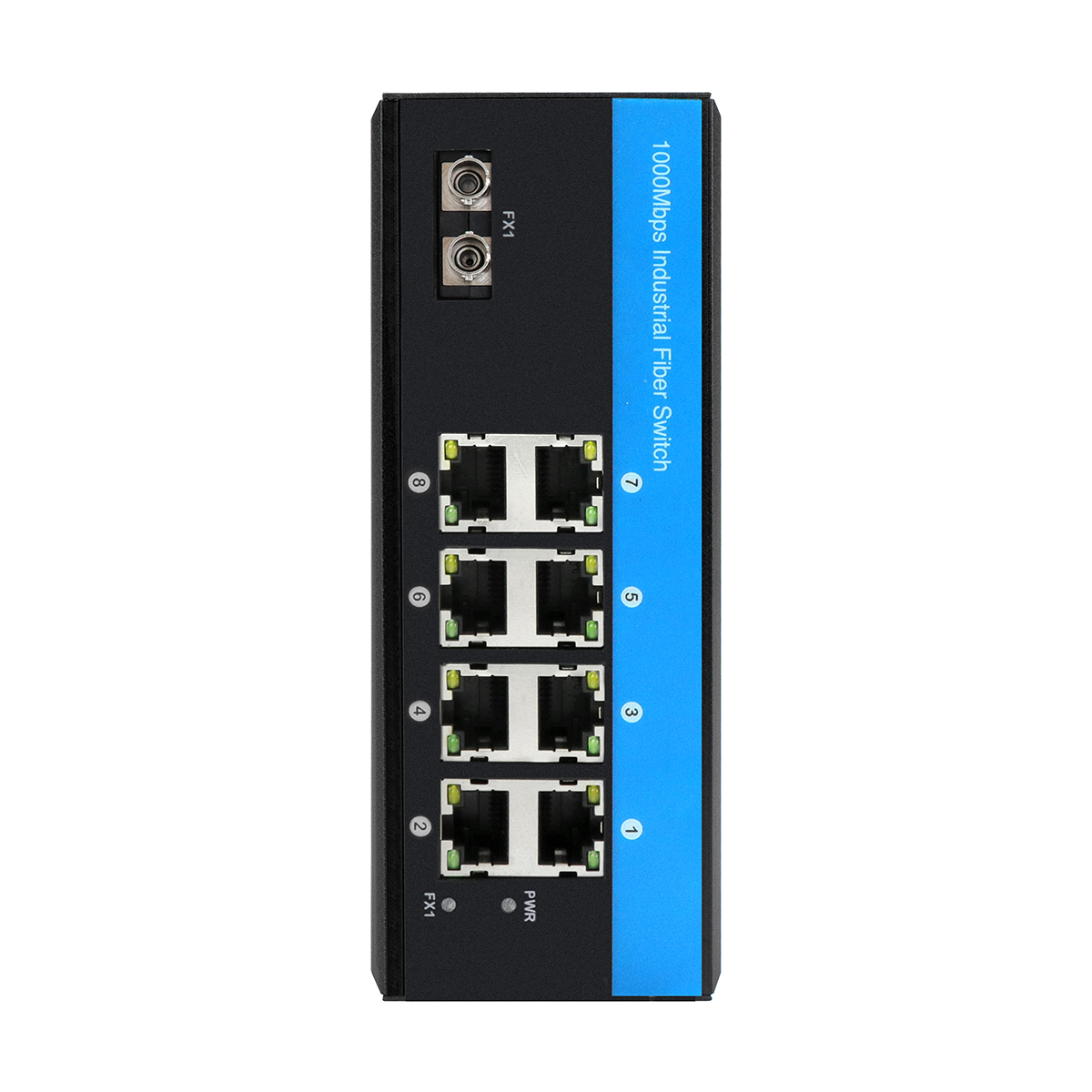

Photo of Industrial Fiber Switch

Compact and Easy-to-Install 8 Port Industrial Fiber Switch with DIN Rail Mounting
